| Product Performance | |||||
| Dimension | 5800*6000*2500mm | ||||
| Wind resistance | ≥11 Grade | ||||
| Seismic performance | ≥8 Grade | ||||
| Wall deformation | ≦300 kilograms/㎡ | ||||
| load-bearing | Frame | 2.3mm | 2500KG | ||
| 2.5mm | 3000KG | ||||
| Top Roof | EPS TOP Roof | 5 KG/㎡ | |||
| Composite Top roof | 20 KG/㎡ | ||||
| Floor | First Floor | 85 KG/㎡ | |||
| Second Floor | 35 KG/㎡ | ||||
| Walls | 50mm | ≧80 kilograms/m2 | |||
| Life Time | 15-20 Years | ||||
| Fire Proof | EPS | B1 Grade | |||
| Rock Wool | A Grade | ||||
| Insulation | EPS | 50mm | ≤0.044[W/㎡ K] | ||
| 75mm | ≤0.035[W/㎡ K] | ||||
| Rock Wool | 50mm | ≤0.066[W/㎡ K] | |||
| 75mm | ≤0.044[W/㎡ K] | ||||
| Density | EPS | 5kg/m³–15kg/m³ | |||
| Rock Wool | 50kg/m³–150kg/m³ | ||||

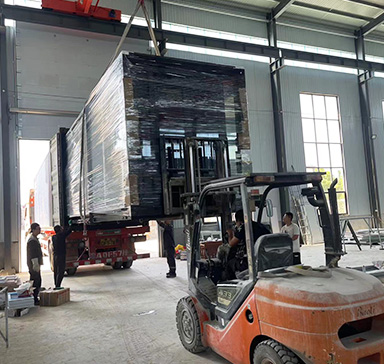

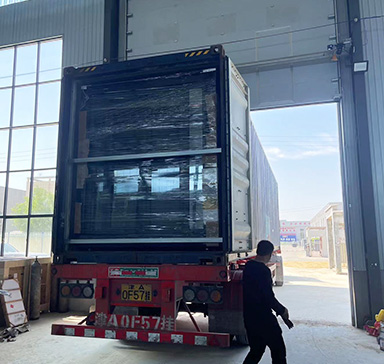

Overall packaging
20'HQ shipping container can most load one unit of foldway .
40'HQ shipping container can most load two units of foldway .
